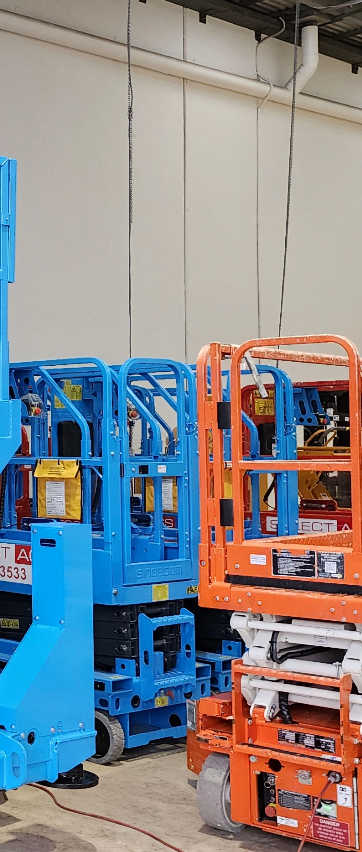

Scissor Lift – Electric 13ft

Maintenance-free battery

Automatic braking system

Drive at full height

Proportional control

Emergency lowering system

Forklift pocket and lifting eyes

Bumper rail

Emergency stop at both platform and ground controls

Electrophoresic painttechnology

4x2 drive

Fault diagnosis system

Foldable guardrail

Non-marking tyres

Tilt protection

Overload sensing system

Integrated hand shield

Automatic pothole guard

Dimension		Metric	US
Max working Height		5.8m	19’
A Max Platform Height		3.8m	12’6”
B Max Horizontal Extension		0.6m	23.6”
C Length-Stowed		1.42m	4’8”
D Width-Stowed		0.76m	2’6”
Height - stowed
	Rail Folded	1.67m	5’6”
	E Rail Unfolded	1.97m	6’6”
	Fixed Rail	1.97m	6’6”
F Wheelbase		1.11m	3’8”
Ground Clearance (Pothole Guard Stowed)		65mm	2.5”
Ground Clearance (Pothole Guard Deployed)		20mm	0.75”
Platform Dimensions (LxWxH)		1.34x0.7x1.1m	4’5”x2’4”x3’7”
Performance
Platform Allowable Occupants (Indoor)		2 persons(Indoor Only)
Platform Capacity		240kg	529lbs
Lift Extension Capacity		100kg	220lbs
Drive Speed-Stowed		4km/h	2.5mph
Drive Speed-Raised		0.8km/h	0.5mph
Lift Time (Unloaded)		30s-33s
Descent Time (Unloaded)		25s-30s
Gradeability		25%
Turning Radius (Inside/Outside)		0.3m/1.35m	12”/4’5”
Tilt Rating (Front to Back/Side to Side)		3°/1.5°
Tyres-solid		230x80mm	9”x3”
Power
Batteries		12Vx2/115Ah
Power Source		24V DC
Drive Mode		Motor, Rear Wheel
Charger Input		100-240V AC
Charger Output		15A
Hydraulic System Capacity		5L	1.1 gal
Weight
Weight (Indoor)		880kg	1,940lbs
Standard Compliance		ISO/CE/ANSI/CSA/AS/CU-TR
