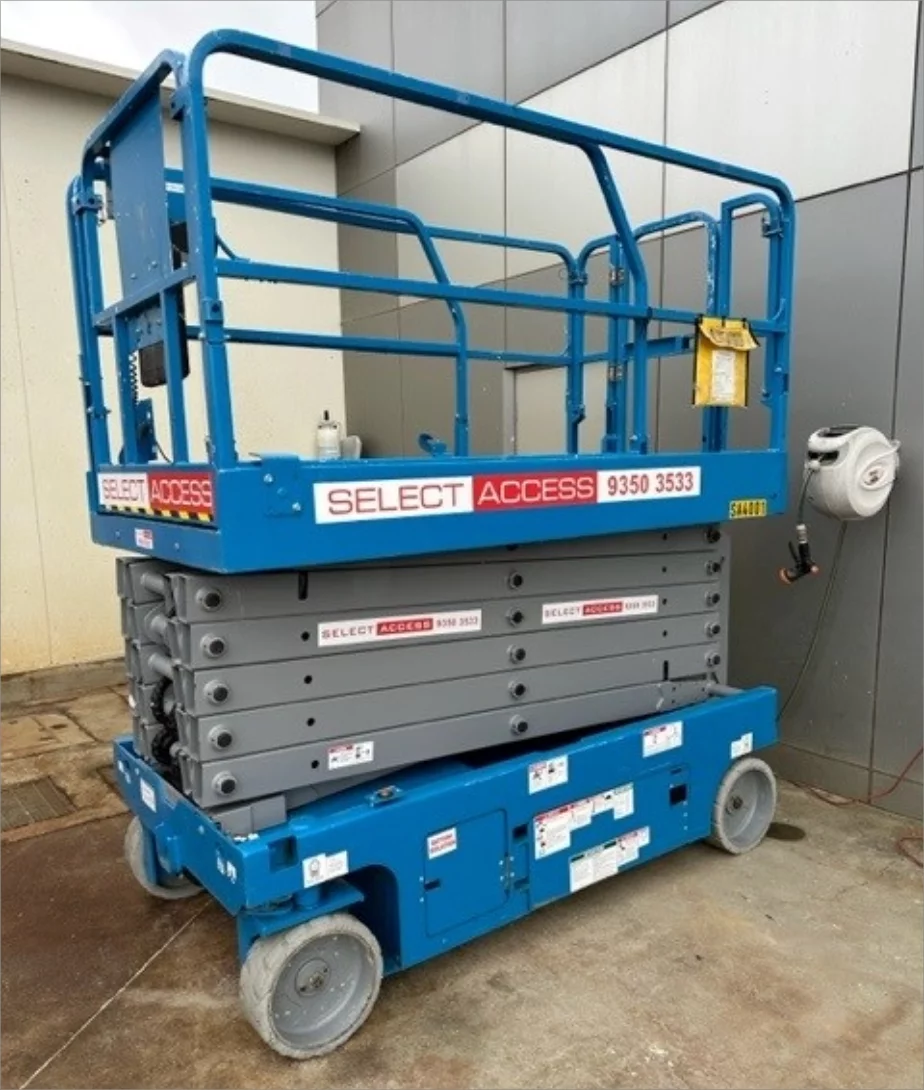

Scissor Lift – Self Propelled 40ft

2.26 x 1.15m (7ft 5in x 3ft 9.3in) steel platform

0.91m (3ft) extension deck

Folding guardrails with full height swings gate

Dual front wheel drive

Smart LinkTM control system (joystick, 2 lift speeds & 2 selectable proportional drive speeds, user-friendly diagnostics)

Platform control with battery charge indicator

Lanyard attachment points

Manual platform lowering valve

Emergency stop at both platform and ground controls

Rear wheel multiple disc brakes

Front wheel hydraulic dynamic braking

Manual brake release

Swing-out component trays

Pothole guards

Solid non-marking tyres

Tilt level sensor with audible alarm

Descent alarm

Automotive-style horn

Hour meter

Certified load sensor

Dual flashing beacons

Motion alarm

24 V DC, 300 Ah (four 12 V 150 Ah batteries in parallel series)

Universal 20 amp smart charger

Measurements	Metric	US
Working height maximum*	13.70 m	44 ft 4.6 in
A Platform height maximum	11.70 m	38 ft 4.6 in
B Platform height - stowed	1.43 m	4 ft 8.3 in
C Platform length - outside - extended	2.26 m 3.18 m	7 ft 5 in 10 ft 5 in
Slide-out platform extension deck	0.91 m	3 ft
D Platform width - outside	1.16 m	3 ft 9.5 in
Guardrail height	1.10 m	3 ft 7in
Toeboard height	0.15 m	6 in
E Height - stowed: folding guardrails rails lowered	2.54 m 1.96 m	8 ft 4 in 6 ft 5 in
F Length - stowed - extended	2.49 m 3.38 m	8 ft 2 in 11 ft 1 in
G Width	1.19 m	3 ft 11 in
H Wheelbase	1.85 m	6 ft 1 in
I Ground clearance - center J - with pothole guards deployed	0.10 m 1.90 cm	4 in 0.75 in
Performance	Metric	US
Max platform occupancy (indoor/outdoor) 1	3/-
Lift capacity	350 kg	770 lbs
Drive height	full height
Drive speed - stowed	3.2 km/h	2.0 mph
Drive speed - raised	0.8 km/h	0.5 mph
Gradeability - stowed**	25%
Turning radius - inside	zero
Turning radius - outside	2.31 m	91 in
Raise/lower speed	71/41 sec
Controls	proportional drive / 2 speed lift
Drive	dual front wheel
Multiple disc brakes	dual rear wheel
Tyres solid non-marking	38 x 13 x 28 cm	15 x 5 x 11 in
Power	Metric	US
Power Source	24 V DC, 300 Ah (four 12 V, 150 Ah batteries in parallel series)
Hydraulic System Capacity	28.4 L	7.5 gal
Sound & Vibration Levels	Metric	US
Sound pressure level (ground workstation)	< 70 dB(A)
Sound pressure level (platform workstation)	< 70 dB(A)
Vibration	< 2.5 m/s2	< 8 ft 2 in/s2
Weight	Metric	US
Machine weight	3222 kg	7103 lbs
Standard Compliance	CE compliance, AS 1418.10
